Wood Block Clock

Inspired by a clock at IKEA with a 7-segment dispaly behind a solid wood front , I wanted to build something like that myself.

And with a led matrix from ebay, a microcontroller and a few more components this sort of different clock was created.

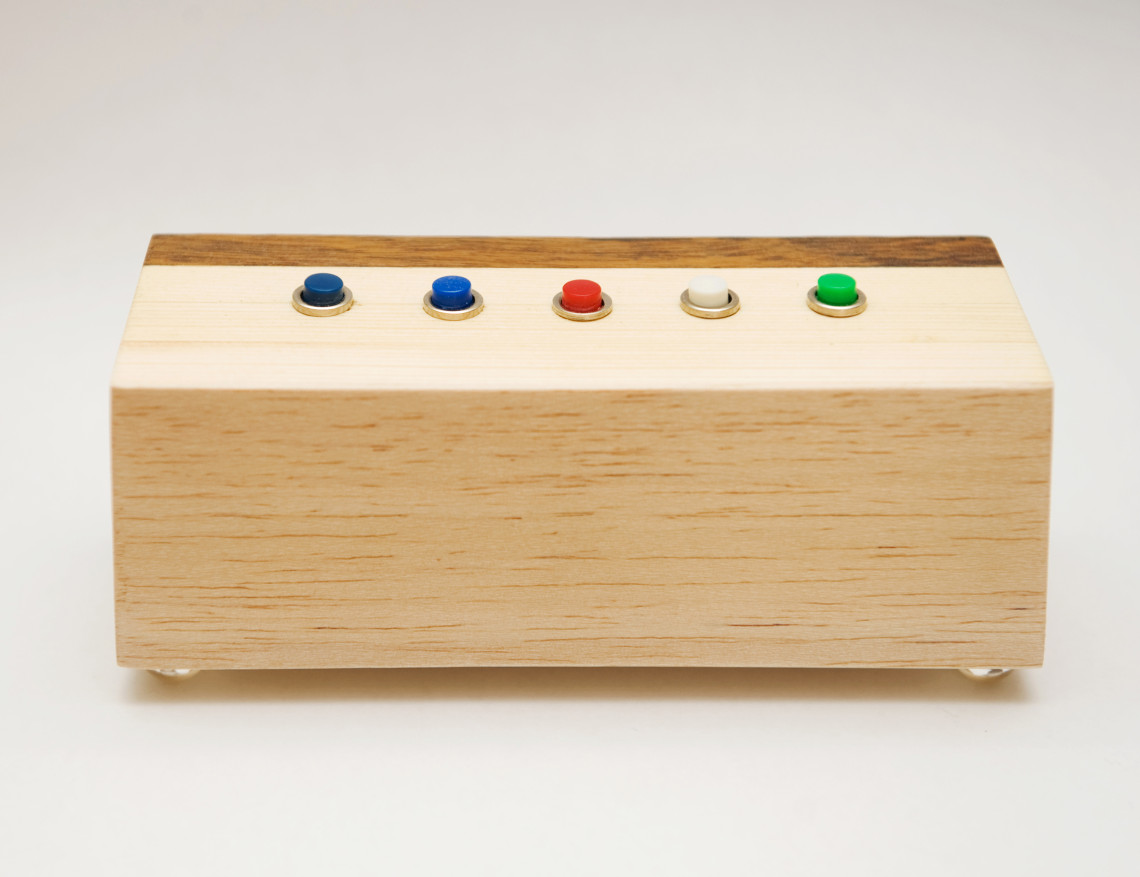

Video and pictures of the finished creation:

_DSC4479

_DSC4457

_DSC4470

_DSC4467

The process

Hardware

First we created the main box by gluing three pieces of pine together:

IMG_2839

IMG_2865

The backplate is made of teak.

IMG_2870

IMG_2868

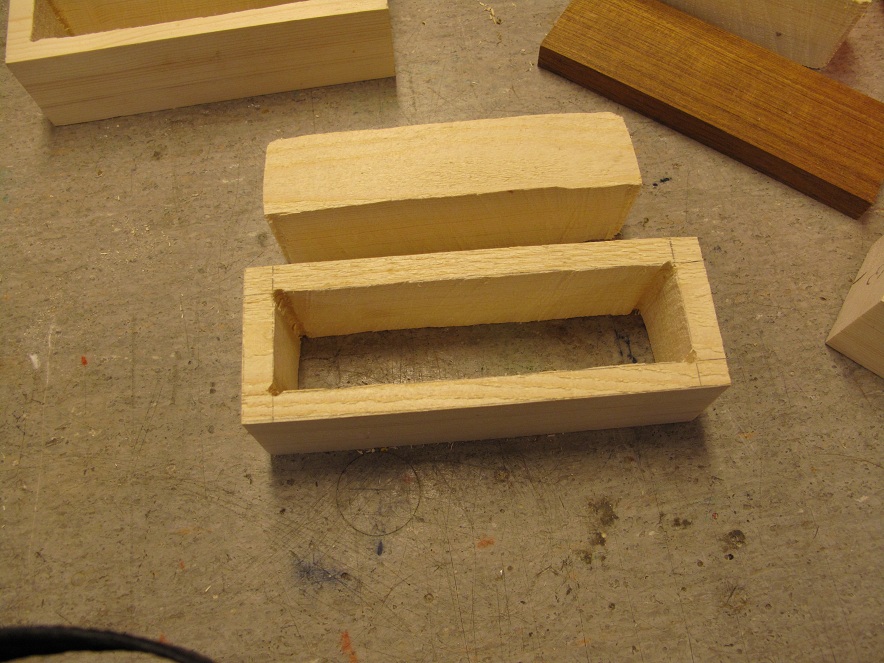

Because we lacked the right tools at the moment, the most difficult part with the main blocks was cutting out the hole in the middle.

IMG_2873

IMG_2874

IMG_2885

With backplate and “depth-aligning” pieces glued on:

IMG_2879

IMG_2880

To create the nice finish we used Liberon Finishing Oil:

IMG_2895

Electronics

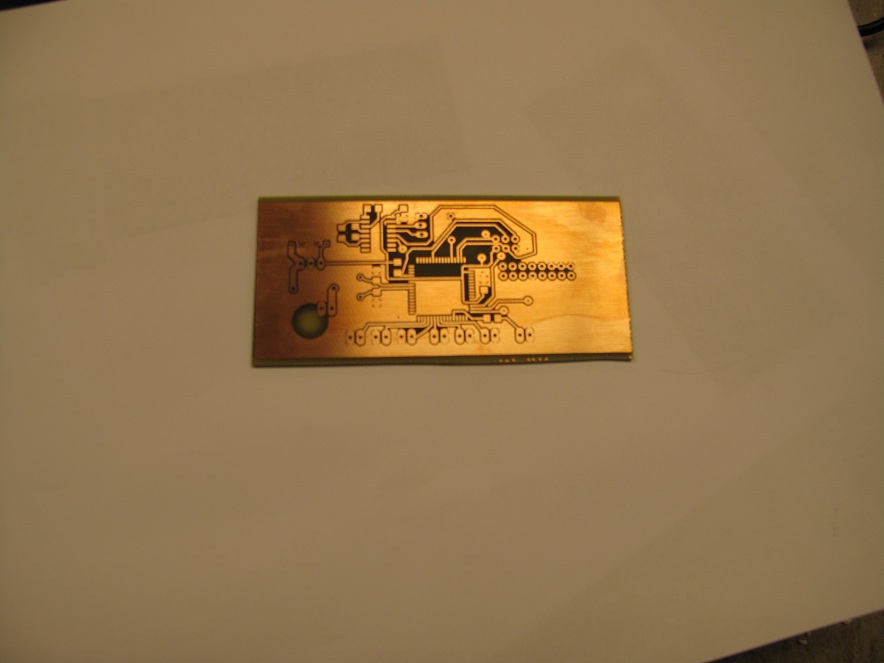

The main board consist of an AVR ATmega128, a MAX232, a buzzer and connections for buttons, led matrix, alarm led, power and the serial connector.

IMG_2848

IMG_2863

IMG_2858

IMG_2919

IMG_2927

IMG_2928

IMG_2929

IMG_2935

The front is a 1mm balsa plate.

IMG_2938

The finished clocks

IMG_2960

Software

The main goal on the software side was making it user friendly. I tried to implement that with mechanisms as such as a menu system where the text scrolls up when selecting main topics, and to the left when entering a sub-menu.

flowchart
